Evaluation of Medical Equipment/Implant Materials
Torsional Torque Measurement by Micro Torsion Tester
Test body holding devices are available for a wide variety of shapes, enabling extremely accurate evaluation of micro torque. We can also perform torsional torque evaluations of medical metallic bone screws conforming to ASTM F543 and JIS T 0311.
Outline of Test Device
Micro Torsion Series 55MT2 (Manufactured by Instron)
| Torque meter capacity | 220N-m or 22N-m |
|---|---|
| Max. length of specimen | 419mm |
| Max. diameter of specimen | 127mm |
| Max. rotational speed | 60rpm |
| Max. rotations | 36,000, either clockwise or counterclockwise |
| Rotational angle resolution | 0.0028℃ |
Examples of Test Body Holding Methods and Output Results

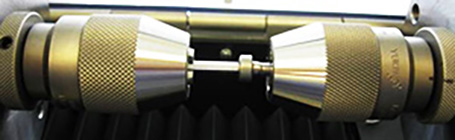

Failure Torque Test of Bolt
-
Example of measurement of failure torque by wrench -
Example of failure torque test of bolt
Failure Torque Test of Fitted Shaft
-
Example of torsional failure torque of fitted shaft -
Example of failure torque test of fitted shaft
-
Measurement of Untwisting Torque of Wire Rope
-
Chuck for Flat Plates
-
Axial Loading Jig
We can also prepare test reports in English and a number of other languages!
In addition to Japanese, we can also provide test reports in accordance with ASTM, ISO and other standards in English.
We can also provide expert translations in many other languages. Please discuss your language needs with us when making an inquiry or request.
